1100 Series Dyno

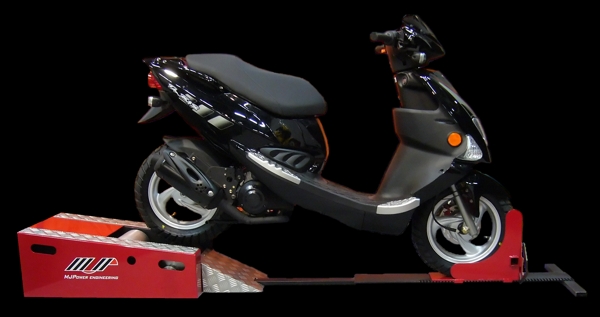

The MJP 1100 Series Dyno.
Because we use an advanced Flywheel design, the 1100 Dyno has an effective weight of 184 Kg!
This is only 12% smaller than the big 2200 Dyno, so it is only the smaller 196 mm diameter Roller that limits its Hp measuring capability. The recommended 50 Hp / 250 Kph limits are far from the theoretically achieveable numbers.

Our 1100 Dyno features built-in Weatherstation for automatic calculation of Correction factors essential for precision.
It also has 5 User configurable Analog 0-5 Volt Channels for e.g. Lambda sensors.

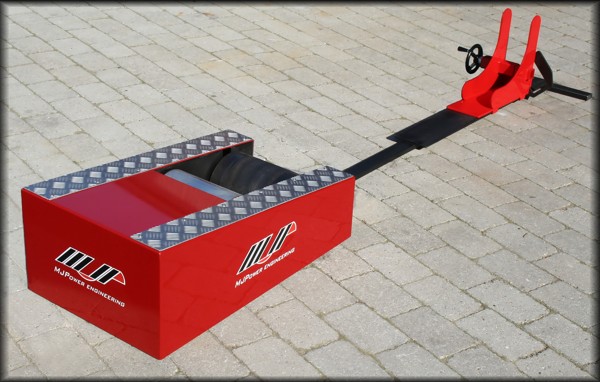

 With the optional frontwheel holder.






Easy to operate frontwheel slider.

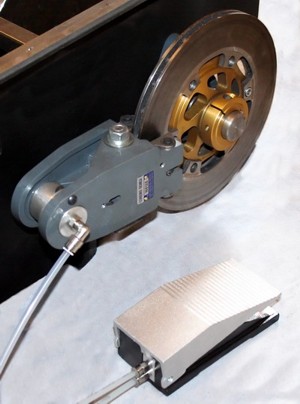

Pneumatic Disc brake kit .



(Click on picture to see it fullsize)

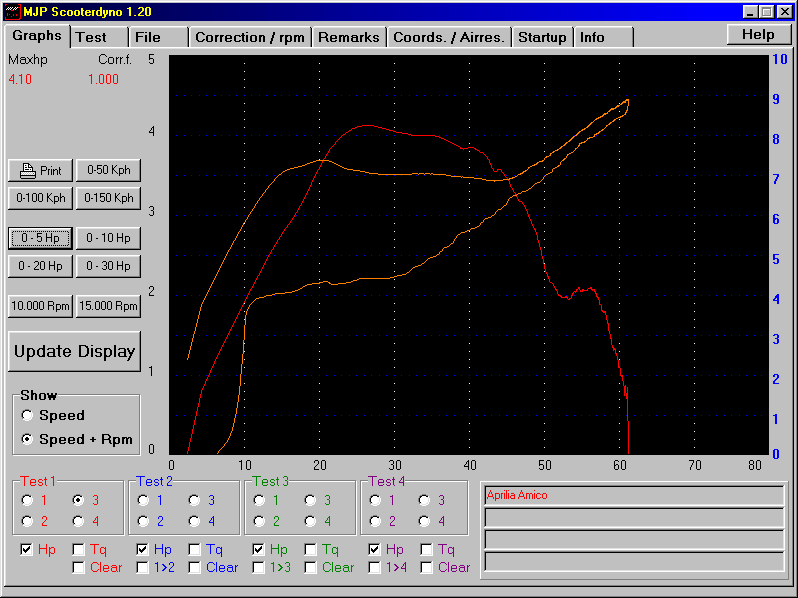

Screen picture showing Hp as Red and Rpm as Orange.

Download Instruction Pdf about setting up a Variomatic gearbox
