MJPower Injection Link 1.4

Now with support for:

RapidBike          1,2 and 4 cylinder maps.

PowerCommander 3 usb     1 and 2 cylinder maps.

PowerCommander 5        1 and 2 cylinder maps.

Bazzaz    Z-Fi.

HealTech FI Tuner     1 and 2 cylinder maps.


The MJPower Injection Link is an integrated part of the MJPower Dyno Software package.



Now it is possible with a single keystroke to map both RapidBike® and PowerCommander® ECU modules from inside the MJPower dyno program.
Simply make a test with the throttle position(s) you want to remap and the MJPower Link software automatically corrects the ECU map table numbers based on the A/F ratio's measured during the test.
This advanced Link also works 100% with the Inertia Dyno, giving the operator the possibility to automate the mapping procedure using the more realistic dynamic acceleration test conditions, instead of being forced to only use old style brake step and hold type of  tests.
On the Eddy Brake equipped versions, our new "Hold'n Go"© feature ( from ver. 7.07.1 ) helps by holding a steady pre-determined Rpm untill the operator has reached the desired part-throttle position for the next run.



Example of auto remap of the 100% throttle position.



100% Throttle position mapping on a Z750N Kawa
Purple is standard Bike, Red is with the Powercommander as delivered and Green is after the MJPower Injection Link had done its automated work in achieving the targeted 13.0 A/F Fuel Ratio.

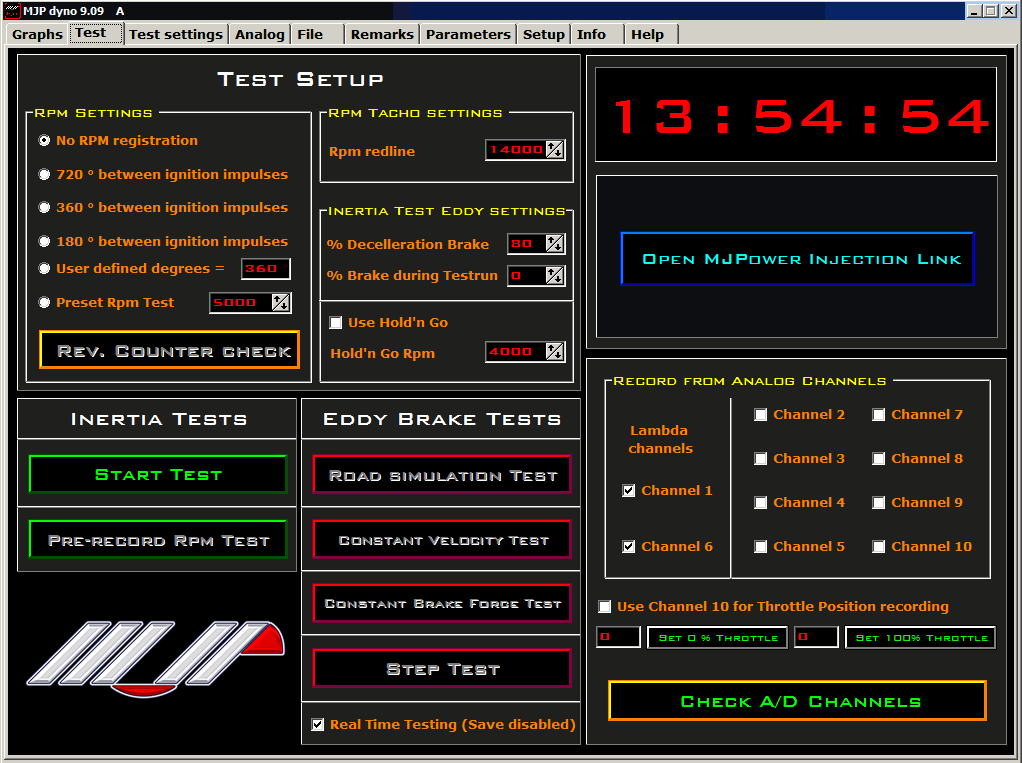

Integrated Throttle position registration during Testing. Click picture for large image.
